Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | OSMANUV |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | OSM-UV-102T |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 সেট |
|---|---|
| মূল্য: | negotiable |
| প্যাকেজিং বিবরণ: | কাঠের প্যাকেজিং |
| ডেলিভারি সময়: | 30 দিন |
| পরিশোধের শর্ত: | টি/টি |
| যোগানের ক্ষমতা: | আলোচনা |
|
বিস্তারিত তথ্য |
|||
| ভোল্টেজ: | 220V/50Hz | শক্তি: | 2.15 কিলোওয়াট |
|---|---|---|---|
| অবস্থা: | নতুন | মাত্রা (L*W*H): | কাস্টমাইজড আকার, 1220 মিমি লম্বা × 470 মিমি প্রশস্ত × 460 মিমি উচ্চ |
| খাঁড়ি বা আউটলেট উচ্চতা: | 130 মিমি | লেপ গতি: | সামঞ্জস্যযোগ্য, 1-10 মি/মিনিট |
| পরিবাহক বেল্ট প্রস্থ: | 300 মিমি | ওয়ারেন্টি: | 1 বছর |
| বিশেষভাবে তুলে ধরা: | UV curing machine for plastic varnish,energy efficient UV curing system,38 percent UV reflective dryer |
||
পণ্যের বর্ণনা

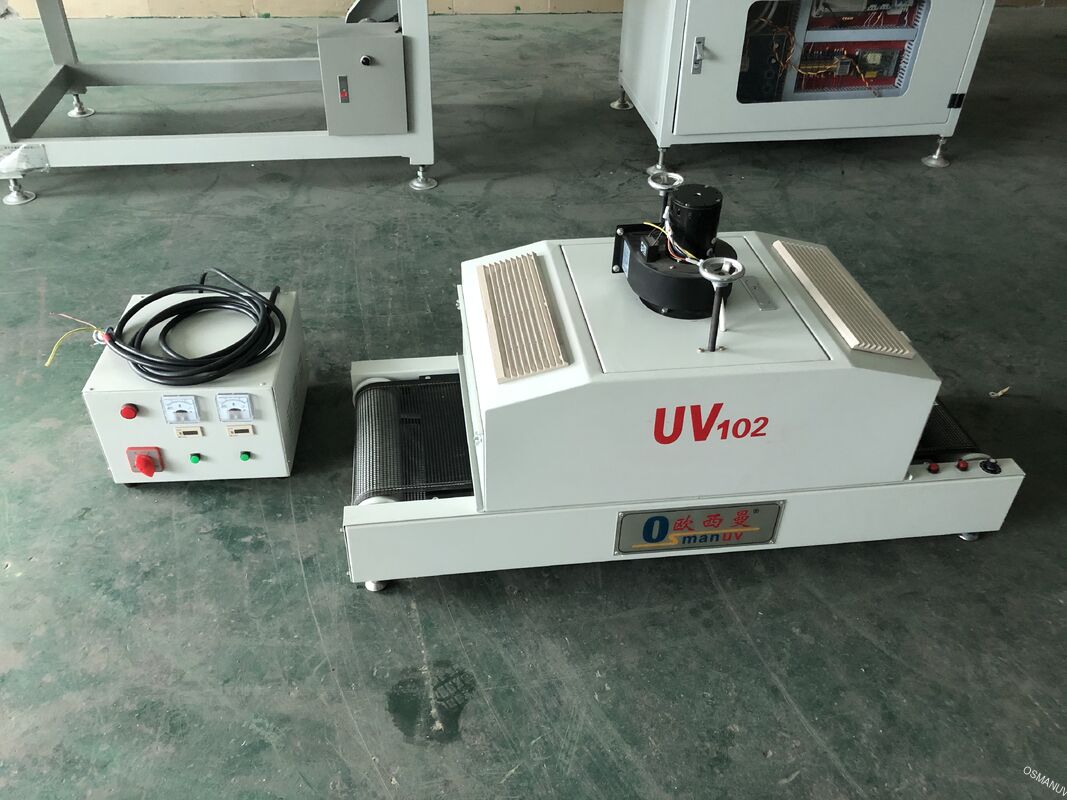

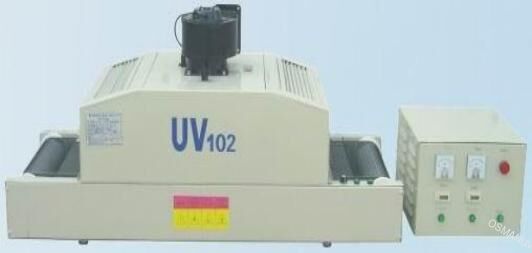

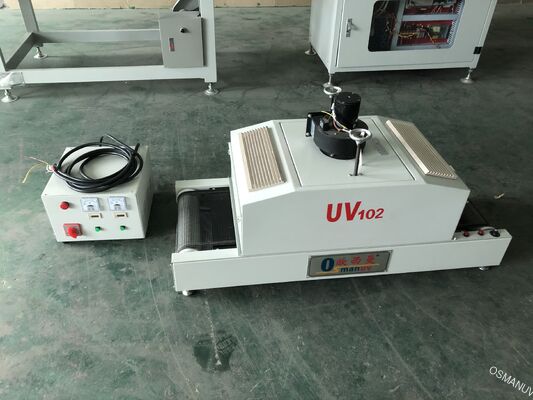

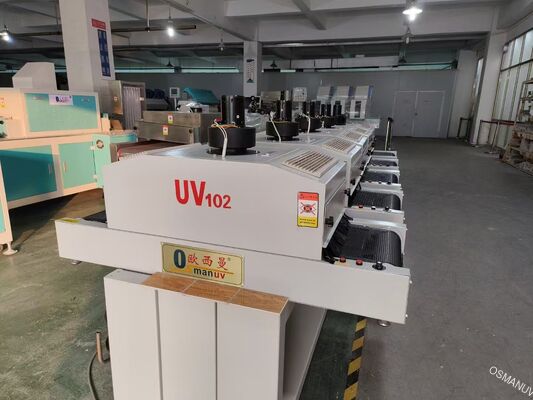

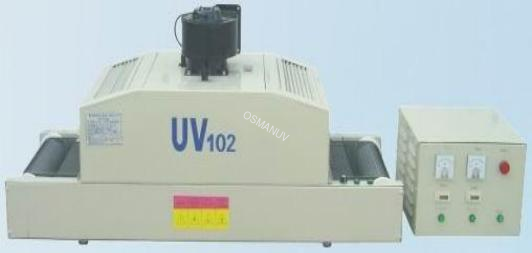

Energy Efficient 38 Percent UV Reflective Curing System for Plastic Varnish Drying
Product Description:
This UV curing system is designed with energy efficiency as a core principle. Its high-precision German Alanod reflector delivers a 38% increase in UV light utilization compared to standard systems, directly translating to lower energy costs and reduced environmental impact. It ensures rapid and complete drying of clear varnishes and topcoats on plastic surfaces, resulting in a high-gloss, durable finish that resects yellowing.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Key Advantage | 38% Higher UV Efficiency (Alanod Reflector) |
| 2 | UV Lamps | 2 x 1KW Mercury Lamps |
| 3 | Lamp Life | 800-1000 Hours (Guaranteed) |
| 4 | Conveyor System | Teflon Mesh Belt (1-10 m/min) |
| 5 | Housing Material | 1.5mm Cold-Rolled Steel (Spray-Baked) |
| 6 | Electrical Safety | Leakage Breaker, Fuse (International Standards) |
Application:
Perfect for achieving a high-quality, clear coat finish on ABS, PC, PMMA plastic panels, cosmetic cases, and automotive interior trims.
Customization:
The machine's cooling system and electrical configuration can be customized to suit specific operational environments and power supply stability requirements.
Feature:
-
Significant reduction in electricity consumption for curing.
-
Enhanced UV uniformity prevents under-cured or over-cured spots.
-
Durable Teflon conveyor belt withstands high temperatures and UV exposure.
-
Complies with international electrical safety standards.
Support and Services:
-
Comprehensive warranty and energy efficiency performance support.
-
Guidance on lamp replacement schedules to maintain peak efficiency.
-
Preventive maintenance checklists provided.
Packing and Shipping:
Robust export packaging ensures safe transit. Standard lead time is 15 days. FOB Terms.
FAQ:
-
Q: How does the 38% efficiency saving calculate in real-world terms?
A: It means you can often achieve the same curing result at a lower power setting or a faster line speed, directly reducing your kWh consumption per part by a significant margin. -
Q: Is the reflective sheet easy to clean or replace?
A: Yes, the reflector is designed for easy access and maintenance. Keeping it clean is part of the standard maintenance to sustain the high-efficiency performance, and it is a customizable component that can be replaced if needed.
