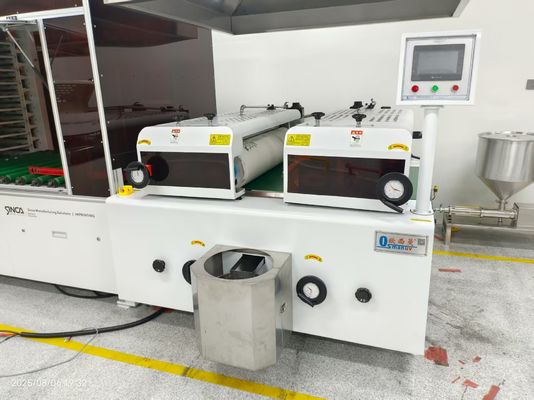

Precision Roller Coating Machine for High-Gloss & Uniform Surface Coating

Precision Roller Coating Machine for High-Gloss & Uniform Surface Coating

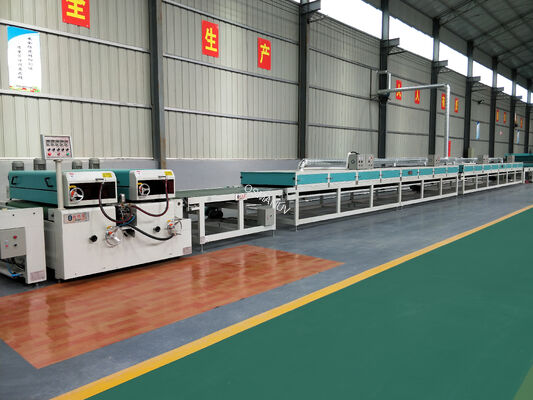

Composition of Production Line

A standard integrated production line includes:

1. Automatic Feeding System: Belt or roller conveyor for consistent panel input.

2. Pre-Coating Surface Cleaner (Optional): Ionizing air bar or brush cleaner to remove dust.

3. Precision Roll Coating Unit: The core module with precision-ground coating roller, doctor roller, and backup roller.

4. Leveling & Drying Section (Optional): A short infrared or hot air flow zone for initial coating settling.

5. Automatic Unloading & Stacking System.

6. Centralized Control Cabinet with HMI.

Product Description

Our Precision Roll Coater is engineered to apply ultra-smooth and uniform coatings on flat substrates. Utilizing a precision-ground roller system and adjustable micrometer settings, it achieves a flawless film with exceptional consistency in thickness and gloss. Ideal for applying topcoats, varnishes, or primers where superior surface quality is critical.

Technical Parameters

Application

• Applying high-gloss lacquer or varnish on furniture panels and cabinet doors.

• Uniform primer or topcoat application on metal sheets.

• Decorative coating on acrylic or composite panels.

• Applying adhesive layers for laminating processes.

Customization

This roller coater is designed to be highly customizable to fit your specific production needs:

• Coating Width: Can be manufactured to your specific panel size.

• Roller Configuration: Options include different roller materials (silicone, rubber) and hardness.

• Integration: Can be customized to connect with your existing drying tunnels, sanding machines, or feeding systems.

• Special Features: Options may include double-sided coating, UV curing module, or specific safety enclosures.

Feature

• Superior Finish: Micro-adjustable roller gap ensures a perfectly even and smooth coating layer.

• High Transfer Efficiency: Precise metering minimizes coating waste compared to spraying.

• User-Friendly: Easy-to-clean design and intuitive touchscreen controls with saved parameter recipes.

• Robust Construction: Heavy-duty frame ensures stability and longevity in industrial environments.

Support and Services

• Pre-Sale: Technical consultation and layout planning.

• Installation & Training: On-site commissioning and operator training.

• After-Sales: 12-month warranty, lifelong technical support, and readily available spare parts supply.

Packing and Shipping

• Packing: The machine is disassembled into key modules, securely fastened in a wooden crate with waterproof lining.

• Shipping: Shipped via sea freight (FOB/CIF terms available) or air freight for urgent needs. All necessary documentation is provided.

FAQ

Q1: What is the main advantage of roll coating over spraying?
A1: Roll coating offers much higher material transfer efficiency (over 90%), providing significant cost savings on coatings. It also delivers a more uniform film thickness and is cleaner (no overspray).

Q2: Can this machine handle both water-based and solvent-based coatings?
A2: Yes, the standard configuration is compatible with both. For highly aggressive solvents, we recommend specifying optional customized roller materials (like certain grades of polyurethane or silicone) during ordering.

Q3: How do we control the coating thickness precisely?
A3: Thickness is controlled by the precise micrometer adjustment of the gap between the doctor roller and the coating roller, combined with the viscosity of the coating and the conveyor speed. The relationship can be calibrated.

Q4: What is the lead time for a customized width machine?
A4: For non-standard widths, the lead time is typically 8-10 weeks after order confirmation, allowing for manufacturing and testing.

Q5: Is training provided for machine maintenance?
A5: Yes, comprehensive training covers routine operation, daily maintenance, and basic troubleshooting for your technicians during commissioning.
