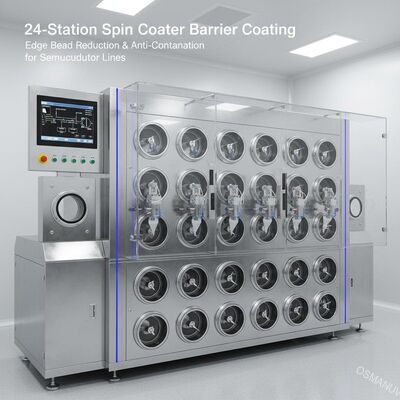

24-Station Spin Coater Barrier Coating | Edge Bead Reduction & Anti-Contamination for Semiconductor Lines
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | OSMANUV |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | স্পেসিফিকেশন |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 সেট |
|---|---|
| মূল্য: | আলোচনা সাপেক্ষ |
| প্যাকেজিং বিবরণ: | কাঠের প্যাকেজিং |
| ডেলিভারি সময়: | 30-45 দিন |
| পরিশোধের শর্ত: | টি/টি |
| যোগানের ক্ষমতা: | আলোচনা |
|
বিস্তারিত তথ্য |
|||
| বৈদ্যুতিন সংকেতের মেরু বদল ব্র্যান্ড: | স্নাইডার | প্যাকিং: | স্ট্যান্ডার্ড কাঠের কেস |
|---|---|---|---|
| খাওয়ানোর পদ্ধতি: | নীচে, পার্শ্ব ঐচ্ছিক | ওয়ার্কিং স্টেশন: | 24 |
| সর্বোচ্চ পণ্য প্রস্থ: | 500 মিমি | সংস্করণ: | 2.0 |
| মাত্রা: | গ্রাহকের প্রয়োজন হিসাবে | ফ্রিকোয়েন্সি ব্র্যান্ড: | শিলিন বা স্নাইডার |
পণ্যের বর্ণনা
24-Station Spin Coater Barrier Coating | Edge Bead Reduction & Anti-Contamination for Semiconductor Lines
This 24-station spin coater barrier coating is formulated to form a sacrificial or permanent isolation layer on substrates before main coating (photoresist, polyimide, or dielectric). It prevents cross-contamination, reduces edge bead formation, and protects spin chucks from solvent attack. Customizable solid content, solvent system, and stripping method available for different wafer sizes (2″-12″) and device layers.
Technical Parameters
| Parameter | Value / Range |
|---|---|
| Solid Content | 2% - 25% (customizable) |
| Viscosity (cP @25°C) | 3 - 150 (adjustable) |
| Density (g/cm³) | 0.85 - 1.10 |
| Spin speed range | 500 - 6000 rpm (24 stations synchronized) |
| Film thickness (after spin) | 0.1 - 5.0 μm (tunable) |
| Drying temperature | 80 - 200°C (hotplate or oven) |
| Drying time | 30 - 180 sec |
| Metal ion content (Na, K, Fe) | < 10 ppb each (high-purity grade) |
| Particle count (≥0.2 μm) | < 30 / mL |
| Stripping method | Solvent strip (NMP, PGMEA) or thermal decomposition |
Applications
- Semiconductor wafer processing (front-end & back-end)
- MEMS & sensor manufacturing
- Compound semiconductor (GaN, SiC) spin coating
- LED phosphor & protective layer
- R & D spin coaters with 24-position capability
- Custom substrates (glass, sapphire, metal, polymer films)
Customization
We offer full customization for 24-station spin coaters:
- Solvent system (PGMEA, cyclohexanone, anisole, water-based)
- Stripping method (wet strip, ashing, or leave-on permanent)
- Edge bead reduction effect (customizable receding contact angle)
- Wafer size compatibility (2", 4", 6", 8", 12")
- Batch volume from 500mL (R&D) to 20L (production)
- Low-metal & low-particle grades available per customer spec
Features
- ✅ Prevents resist contamination on spin chuck and cover cup
- ✅ Reduces edge bead height by 60-80%
- ✅ Compatible with automated dispensing & EBR systems
- ✅ No post-coating residue after proper stripping
- ✅ Heat-stable up to 200°C (no outgassing)
- ✅ Low defect density (<0.05 defects/cm²)
- ✅ Can be used as sacrificial layer for lift-off processes
Support and Services
- Process optimization for your 24-station spin coater (speed/acceleration/ramping)
- Free residue test on your wafer type
- On-site or remote installation support
- Custom formula development within 15 working days
- Material safety datasheet (SDS) + processing guide
- 24/7 technical support for production lines
Packing and Shipping
- Standard packing: 1L, 4L, 20L HDPE bottles (double-bagged)
- Custom packing: 200L drum, 1000L IBC, or sealed syringe cartridges for automated dispensing
- Shipping: Cleanroom-packed, Class 3 flammable (if solvent-based) or non-dangerous (water-based)
- Lead time: 5 days for stock, 12-18 days for custom batches
- Storage: 6-12 months @15-25°C in original sealed container
Frequently Asked Questions
Q1: Can this barrier coating be used on all 24-station spin coaters?
A: Yes. The fluid is customizable for different nozzle types (static, linear scan, or spray) and spin chuck designs (vacuum or mechanical). Provide your coater model for optimization.
Q2: Is it permanent or removable?
A: Both. Standard version is strippable (solvent or ash). Permanent version available for protective layer applications.
Q3: Will it affect photoresist adhesion?
A: No. The barrier coating is designed to be either fully removed or to have matched surface energy. Adhesion tests can be provided.
এই পণ্য সম্পর্কে আরও বিশদ জানতে চান
