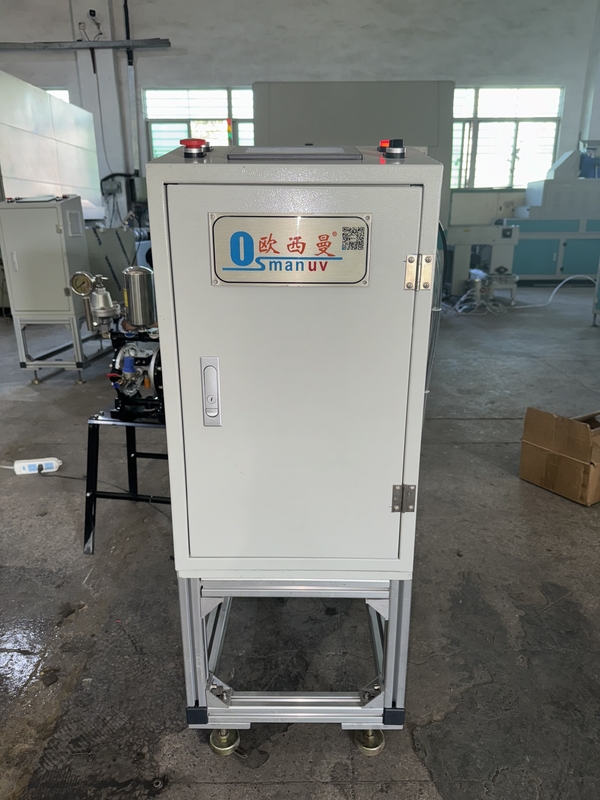

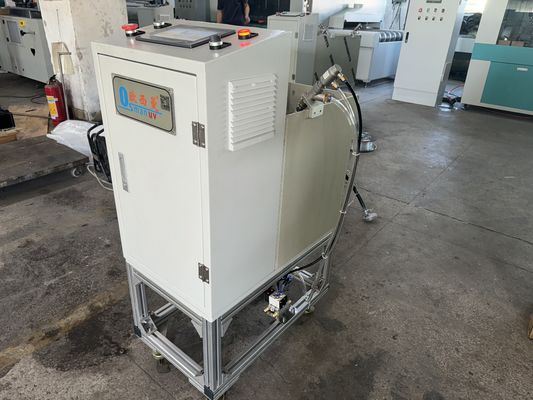

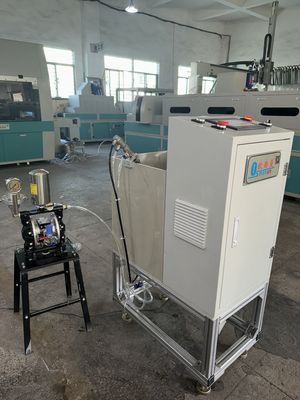

High-Precision Single Station Spin Coater – Customizable Ramp & Speed Profile for R&D Labs
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | OSMANUV |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | স্পেসিফিকেশন |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 সেট |
|---|---|
| মূল্য: | আলোচনা সাপেক্ষ |
| প্যাকেজিং বিবরণ: | কাঠের প্যাকেজিং |
| ডেলিভারি সময়: | 30-45 দিন |
| পরিশোধের শর্ত: | টি/টি |
| যোগানের ক্ষমতা: | আলোচনা |
|
বিস্তারিত তথ্য |
|||
| ডাই হেড: | সামঞ্জস্যযোগ্য | সাবস্ট্রেট: | ফাইবার সিমেন্ট বোর্ড |
|---|---|---|---|
| ওয়ার্কিং স্টেশন: | দুই | গরম করার উৎস: | বৈদ্যুতিক আইআর হিটিং |
| উপাদান সামঞ্জস্য: | বিভিন্ন সজ্জা ঢালাই পণ্য সঙ্গে সামঞ্জস্যপূর্ণ | শুকানোর সময়: | সামঞ্জস্যযোগ্য |
| আবরণ পদ্ধতি: | স্প্রে লেপ / রোলার লেপ | মেশিনের ওজন: | প্রায় 500-800 কেজি |
| বিশেষভাবে তুলে ধরা: | single station spin coater,customizable ramp speed spin coater,R&D lab pulp coating machine |
||
পণ্যের বর্ণনা
High-Precision Single Station Spin Coater – Customizable Ramp & Speed Profile for R&D Labs
Product Description

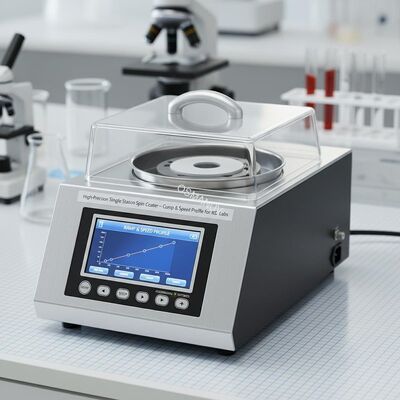

Our single station spin coater is designed for uniform thin film deposition of photoresist, polyimide, sol-gel, and nanoparticles. It features high speed stability (< ±1% fluctuation), low vibration, and a chemical-resistant bowl. The compact design is suitable for R&D labs, pilot lines, and small-batch production.
Customizable options include:chuck size, bowl material (PTFE/PP/stainless steel), motor type (brushless DC / servo), and exhaust port position.
Technical Parameters:(table format)
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Substrate size | 10 mm – 150 mm dia. | Up to 200 mm square |
| Speed range | 100 – 12,000 rpm | 50 – 15,000 rpm |
| Acceleration | 100 – 10,000 rpm/s | Customizable ramp profiles |
| Speed stability | ±0.5% | ±0.1% (servo motor) |
| Program steps | 10 programs, 20 steps each | Unlimited steps customizable |
| Chuck type | Vacuum chuck (aluminum) | PTFE / ceramic / custom pattern |

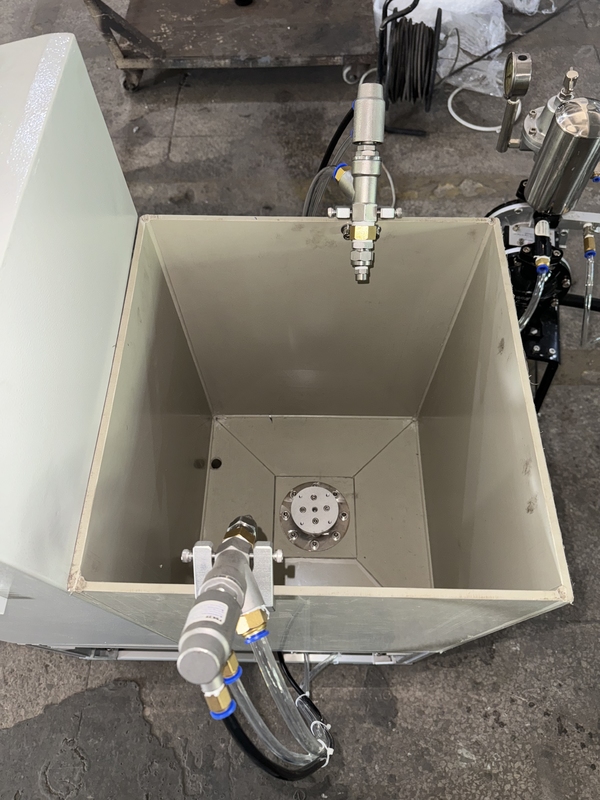

| Bowl material | Polypropylene (PP) | PTFE / stainless steel 316L |
| Exhaust port | Ø50 mm rear | Left / right / dual ports |
| Motor type | Brushless DC | Servo motor customizable |
| Display | 4.3" LCD | 7" HMI touch screen |
| Power | 220V/50Hz or 110V/60Hz | Available for any voltage |
Application
-
Semiconductor wafer coating (photoresist, ARC)
-
OLED and quantum dot thin films
-
Sol-gel and spin-on glass (SOG)
-
Biosensor and polymer film deposition
-
Perovskite solar cell fabrication
Also suitable for customizable high-viscosity or high-temperature processes.
Customization
We offer full customizable options:
-
Bowl inner diameter and drain groove design
-
Vacuum chuck shape for non-standard substrates (e.g., rectangular, broken wafers)
-
Automatic cover with interlock
-
Nitrogen blow-dry during spin
-
Multiple dispense nozzle brackets
-
Special coating programs (e.g., reverse spin, pulse spin)
Feature
-
High acceleration repeatability for uniform edge bead
-
Real-time speed curve display and data export (CSV)
-
Easy-swap chuck design without tools
-
Chemical-resistant and seamless stainless steel or PTFE bowl
-
Autofill rinse function for cleaning between runs
-
Customizable recipe library for multiple operators
Support and Services
-
Installation guide and calibration video included
-
Remote troubleshooting within 24 hours
-
18 months warranty on motor and controller
-
On-site training (available for customizable packages)
-
Spare parts shipment from local warehouses (US/EU/Asia)
Packing and Shipping
-
Packing:Foam-lined wooden case with anti-static bag
-
Dimensions (carton):55×45×45 cm
-
Gross weight:approx. 22 kg
-
Shipping:DHL / FedEx / UPS air freight；Sea freight available for bulk orders
-
Customizable labeling and export packaging for drop-shipping
FAQ
Q1:Can the speed ramp be customized for multiple steps?
Yes. Up to 20-step profiles are customizable per recipe.
Q2:Does it fit 100 mm round or square substrates?
Yes. We offer customizable chucks for square, rectangular, and irregular substrates.
Q3:What is the lead time for a custom bowl material?
Standard units ship in 7 days. Customizable bowls (e.g., PTFE) require 3–4 weeks.
